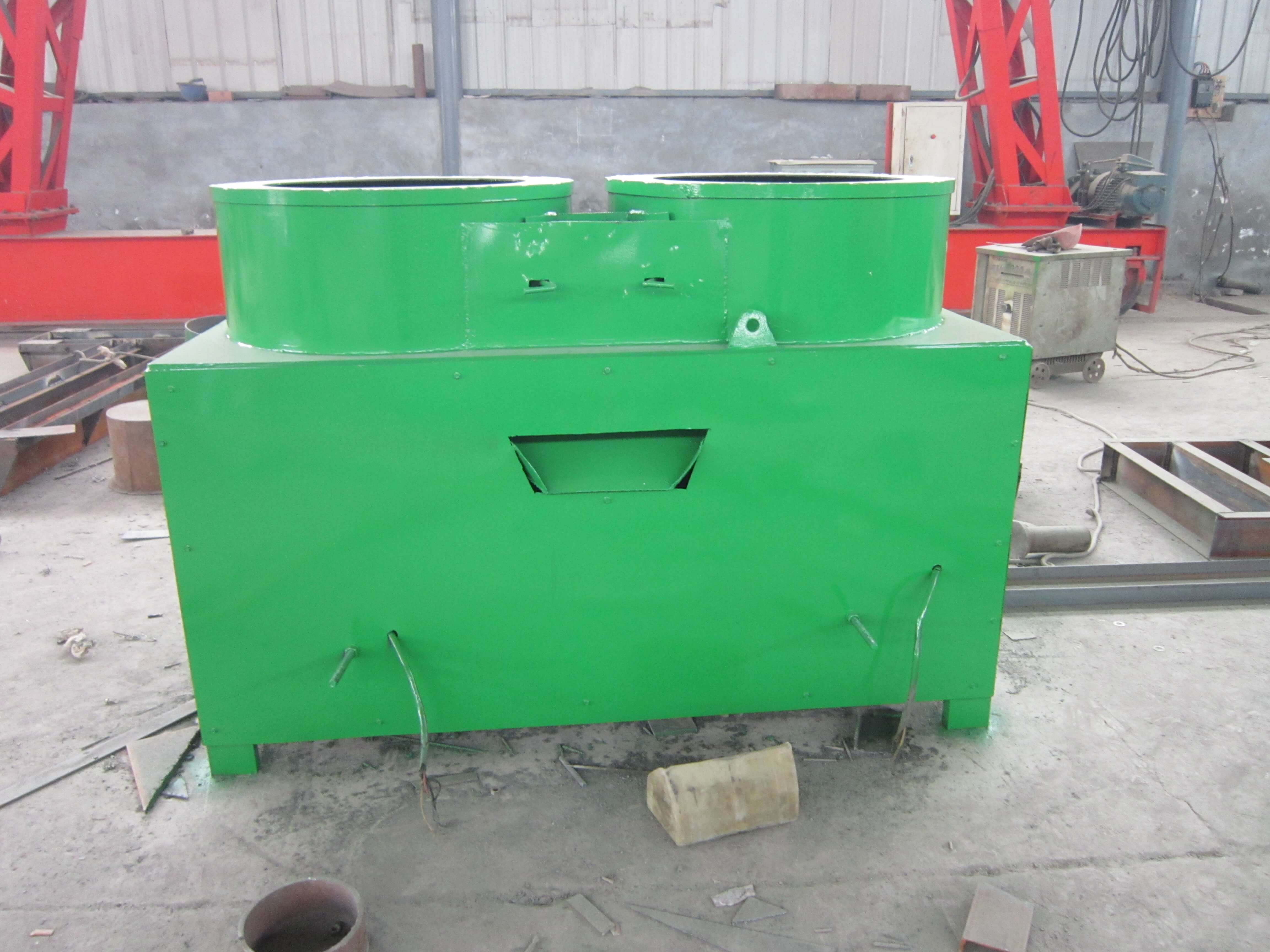

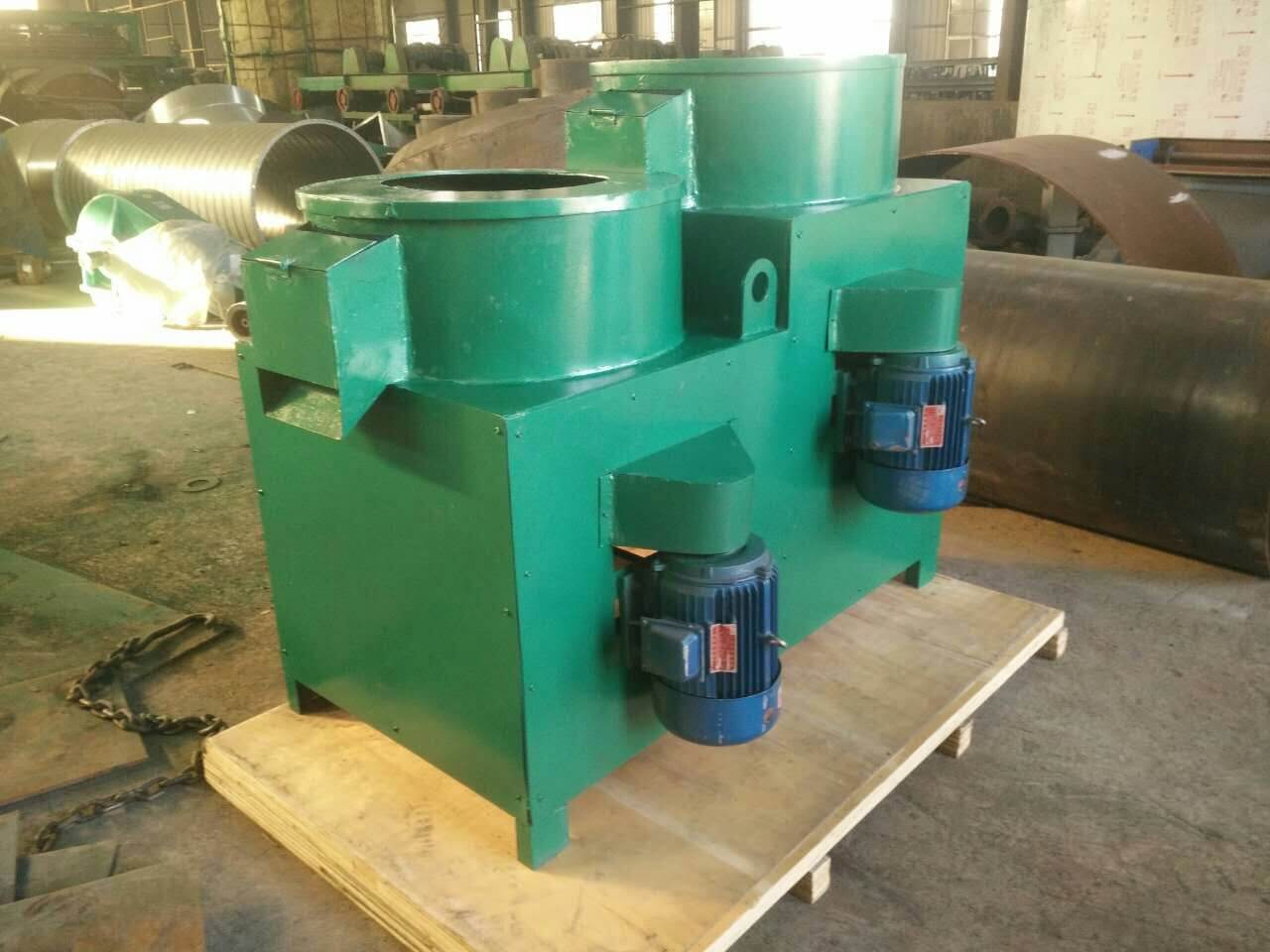

the fertilizer ball shaping machine uses a unique three in one machine to complete the whole process of low temperature drying, cooling and sieving. fertilizer ball shaping machine with less investment, low operation cost, microbial survival rate more than 90%, which is widely used in organic waste granulation poultry raising, brewing, sugar, paper, medicine, tobacco, and other industries,
the ball shaping machine is usually used with double roller granulator. the production of ball type pure organic fertilizer, organic fertilizer and inorganic fertilizer, bio organic fertilizer; (Biology) is the ideal choice for equipment organic fertilizer production enterprises.
The main characteristics of the ball shaping machine:
1, fertilizer ball shaping machine this type pressure roller adopt bevel wheel. And ends with the mold plate and the outer ring line speed, the friction wheel and the dislocation does not appear to die, reduce the resistance, reducing the kinetic energy loss and prolong the service life of the die.
2, pressure rollers are uniformly arranged, smooth operation, eliminate the phenomenon of ordinary flat embossing roller is easy to feed.
3, the center of pressure regulating structure, adapt to different materials, to ensure the suppression effect. Sawdust, corn straw compression molding takes a lot of pressure, in the same granulation equipment, roller parts are the center of the device components, and the use of high quality alloy steel, improve the service life of the roller.
4, the fertilizer ball shaping machine have a variety of 2-8mm aperture mould, adapted to different materials to achieve the best results.
technical data of ball shaping machine
PY–I
power:5.5kw
capacity:800–1000kg/h
size:900X900X1200MM
PY–II
power:4+4kw
capacity:2–3t/h
size:1800X900X1450MM
