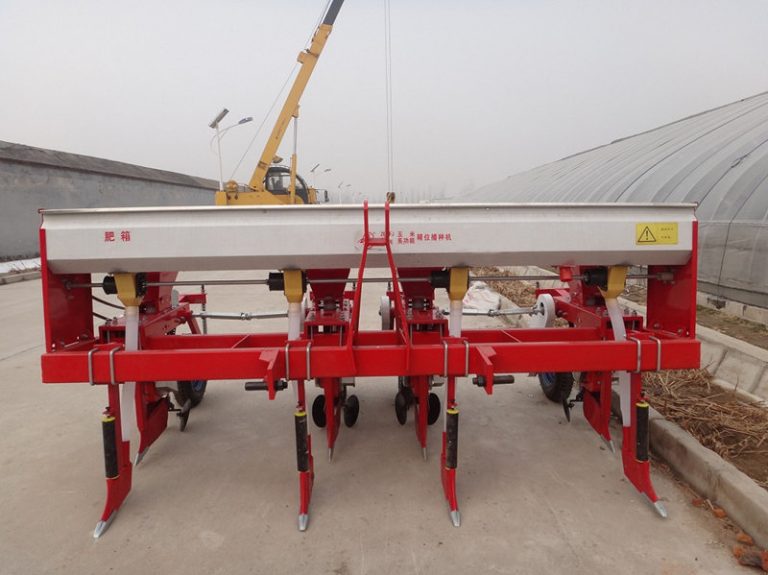

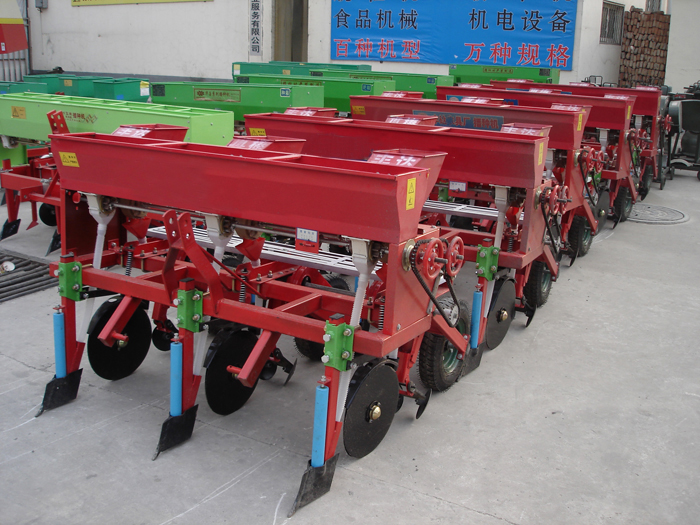

The high precision corn seed planting machine is simple mechanism and easy to operate, you can chose from two types, one for single seed, the other for double seeds. This kind of precision seed planting machine must be driven by the four-wheel tractors,and it also sows the crystalline granule fertilizer while seeding. the corn seeder machine can finish furrowing,fertilizing,seeding,
covering earth,pressing etc.it can satisfy all kinds of different soil requirement,and can seed corn,wheat,soybean etc.
Features of precision seed planting machine
1.the seeding device has high precision,the grain seed qualified index can reach to 90%,
the seedling distributes evenly.
2.the seed planting machine has two types sowing device,one is single seed,the other is double seed sowing.
3.all the gears in the gear box adopt quality steel and carburizing to increase the use life time.
4.the machine can planting corn seed,wheat seed,soybean seed, with free ploughing.
5.the corn seed planting machine adopts gravity sowing which will not damage the seeds
6.the machine can be used at already ploughed land or un ploughed land
Data of corn seed planting machine
Model | VBYSF—2 | VBYSF—3 | VBYSF—4 |
Overall dimensions（m） | 1.45×1.26×1 | 1.46×1.65×1 | 1.46×1.95×1 |
Weight（kg） | 140 | 190 | 270 |
Minimum Power of tractor （kW/HP） | 8.8～13.2kw (12～18hp) | 11～22.5kw (15～30) | 25.9～40.7kw (35～55) |
Working efficiency （ Acre/h） | 0.5～0.75 | 0.75～1.2 | 1.0～1.5 |
Sowing number | 2 | 3 | 4 |
interrow distance（mm） | 428～630 | 428～800 | 428～570 |
Fertilizer hopper capacity(L) | 65 | 110 | 150 |
Seeds hopper capacity(L) | 9X2 | 9X3 | 9X4 |
Type of seeding mechanism | ladle-type | ||
Type of fertilizer feed | Nylon big external grooved sheave | ||
Opening share of fertilize | Shovel type opening share | ||
Plough dept(mm) | 60～80 | ||
Fertilizing depth(mm) | 60～80 | ||
Seeding depth(mm) | 30-50 (adjustable) | ||
| Planting distance(mm) | Single model 140、173、226、280Double model 280、346、452、560(four distance for chose) |
