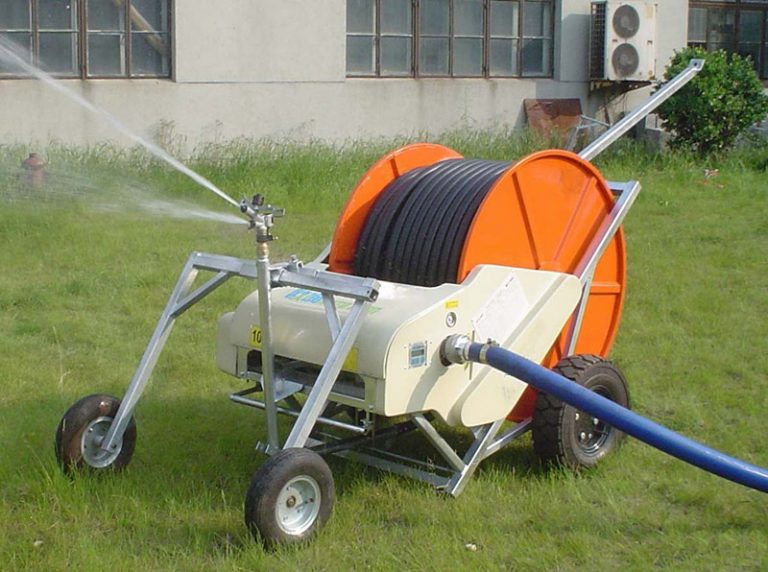

farm irrigation systems is a turbine-driven farm watering machine which is designed for fully mechanized and labor-saving irrigation.the farm irrigation systems has simple structure,high degree of automation, strong adaptability, simple operation and multistage speed, the hose reel farm irrigation system is the best ideal water-saving farm irrigation machine and this type farm irrigation equipment also can be used in different areas for water saving irrigation projects.this farm watering machine mainly consists of chassis, frame,roll PE pipes, automatic speed regulation device, hydro-turbine driven system, gear box,sprinkler wagon and guiding device, etc.
The mobile farm irrigation systems equipment for sale is suitable for farmland, stadiums,golf courses,soccer fields, lawns, meadows, parks, gardens and a variety of crops.this series farm watering system mainly used for garden and farmland.For garden,it can be used for playgrounds,parks and gardens,lawn etc.For farmland,the farm watering system can irrigate orchard and fields which plant rice,wheat,corn, peanut etc.
Features of farm irrigation systems
1.the farm irrigation machine has corrosion protection,hot dip galvanized of undercarriage, turntable,sled andshut-off frame provides lasting value by optimum protection of metal parts.
2.the farm irrigation systems has stable pipe reel,the pipe drum is a particularly torsion resistant constructionof profiles and edged segments.All cover segments are firmly welded of the drum frame.
3.Precision chain drive,Precision manufactured toothed segments for the reel drive guarantee exact chainengagement. This ensures maintenance free operation and long life of the driving chain even with very high retraction forces. Layering mechanism for constant PE pipe retraction.This guarantees constant retraction speed and instant emergency shut off in case of winding faults.This safety irrigation system also actuates the final shut off of the reel drive at the end of the strip.
4.it is sturdy farm watering machine supports. Strong shields such as support legs and rack jack firmly anchor the operating process and not evenhigh retraction forces will move the farm watering machine from its stable position.
5.Two speed gearbox,Allows you to select the optimum performance range for the desired retraction speed and precipitation height very conveniently.
Data of farm irrigation systems
Model | VTHR50 | VTHR65 | VTHR75 | VTHR90 | VTHR110 |
PE Pipe Diameter(mm) | 50 | 65 | 75 | 90 | 110 |
PE Pipe Length(m) | 100~300 ( can be made according to customer’s needs ) | ||||
Power(kw) | 11 | 15 | 22 | 22 | 22 |
Flow Rate(m³/h) | 5~19.7 | 11~31 | 13~38 | 17~52 | 45~106 |
Machine Working Pressure(Mpa) | 0.4~0.78 | 0.5~1.0 | 0.5-1.0 | 0.5-1.0 | 0.55~1.25 |
Nozzle Pressure(Mpa) | 0.2~0.4 | 0.2~0.6 | 0.3~0.6 | 0.4~0.6 | 0.5~0.8 |
Nozzle Diameter(mm) | 9~16 | 14~18 | 16~22 | 20~26 | 24~32 |
Spray Range(m) | 19~30 | 28~43 | 28~43 | 35~52 | 45~68 |
Spray Width(m) | 32~51 | 47~74 | 47~74 | 60-90 | 77~116 |
Nozzle Height(mm) | 600 | 1300 | 1300 | 1300 | 1300~1500 |
Climbing Rate(%) | 20 | 20 | 20 | 20 | 20 |
Traction Height(mm) | 300 | 300-500 | 300-500 | 300-500 | 300-500 |
Ground Clearance(mm) | 300 | 300 | 300 | 300 | 300 |
