complete small rice milling line equipment factory

Small rice milling line is a professional equipment for paddy rice processing.This complete rice mill plant can process paddy into national standard rice just in one process. Paddy goes into machine in a process can produce some standard rice. Rice milling line can produce white rice 10-20 ton/day.This rice milling line is equipped with the automatic feeding device, cleaning sieve, iron roller paddy husker, husk separation, gravity sieve for paddy and brown rice separating, rice milling machine, broken rice grading machine, electrical control cabinet.

this complete rice milling equipment can also equipped a special bran crusher.And the capacity of the single machine and plant can be customized according to customer’s requirements.This rice milling line is the most ideal paddy processing machine for grain distributing station,small rice processing factory, rice supply center,mountainous area, farm as well as self-employees.

Rice milling equipment use 3 phase electric motor as power.The output of this small rice milling line can be 800~1000 kg/h.This rice milling line has beautiful look and compact structure,with high ratio of rice, less broken rice, low power consumption and easy to processing.

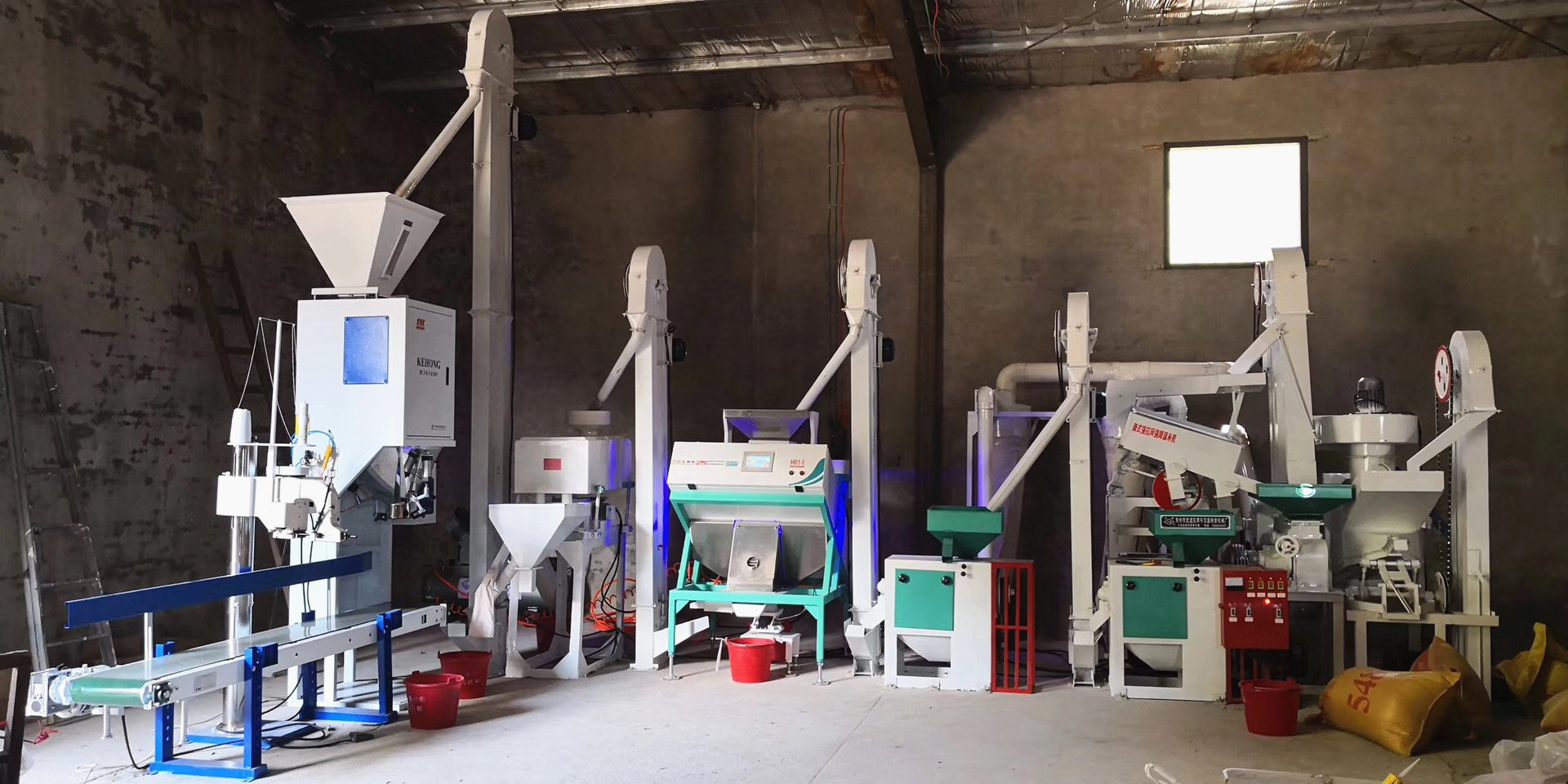

Small Rice Milling Line

Work principle of small rice milling line

The raw grain is artificially put into the rice feed hopper and then send to rice destoner machine,to clean and separate stone ,impurity from paddy rice.the paddy rice will be sent to rice husker after cleaning. After being shelled, the grain, the shell and the rough go into bran separator. The bran is sucked out by bran fan. Rice and unpolished rice mixture is lifted to paddy separator by the second elevator to be separated.

In the process of rice milling, the high pressure fan is sprayed into the polishing chamber continuously through the hollow shaft of the rice machine, which can reduce the rice temperature, unimpeded the bran, and make the rice smooth and clean.There are three kinds of goods separated: the net brown rice goes into rice mill polished, the finished rice is out from the discharge hole of small rice milling line and the rice bran falls into the bran saving chamber.

The other part passes back to the rice huller by the first elevator. Repeat the process above to achieve the purpose of white rice milling.the milled rice will be fed to rice polisher for whiten and brighten.The next step of complete rice milling line is rice color sorter ,in this step,black or yellow rice will be selected.the white will be kept for rice grading .the final step of this complete rice milling line is automatic rice weighing and packing’s mainly used for white rice weighing and packing .after packed ,the rice can be sold on market.

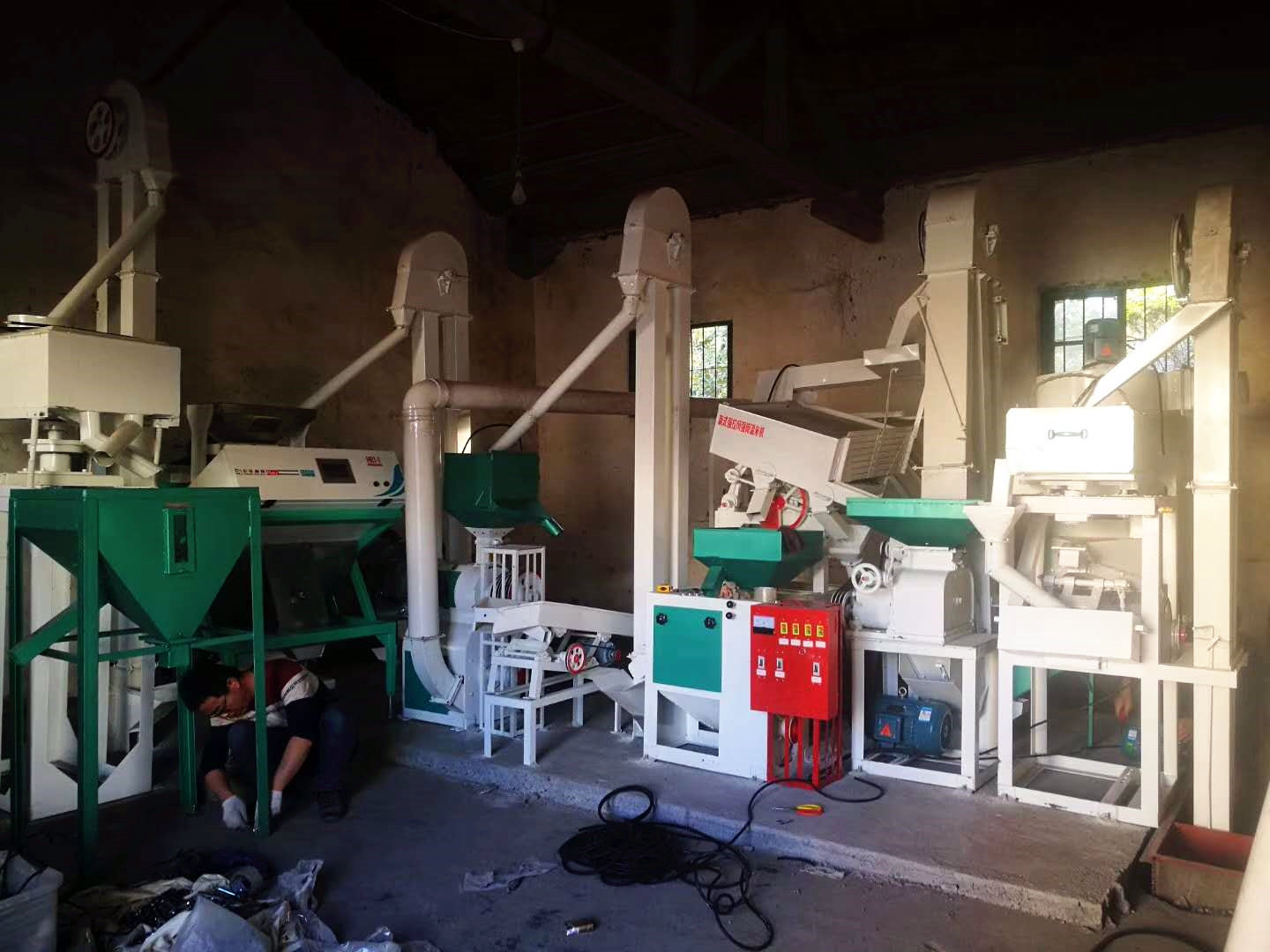

Complete Rice Milling Line

Features of complete rice milling equipment

1.This integrated rice milling line can be used to process both long shape paddy rice and short paddy rice,round paddy rice. Complete rice milling equipment is suitable to produce both white rice and parboiled rice, high output rate, low broken rate.

2.This complete rice milling equipment is combined with bucket elevators, vibration cleaner, husker, paddy separator,rice milling machine, rice grader,which is practical and eco-friendly.

3.Fully automatic small rice milling line, less power consumption,compact structure, small volume, high output, less broken rice production, high purity. Easy to operate, we provide English version operation instructions.

4.We can install complete rice milling line based on steel framed operation platform or concrete flatbed according to customers requirement,the rice color sorter machine and packing machine are optional.

5.Main body warranty 12 months except the spare parts,all spare parts are made by high quality materials, durable and reliable.

6.We have rich experiences of building the complete rice mill lines at abroad successfully, and received high reputation from our customers for good quality, best price as well as professional technical support.Trusted & guaranteed whole service with professional technical support before and after sales.

Complete Rice Milling Equipment

Machine details of small rice milling equipment

Rice destoner machine1 set
Rice husker1 set
Grain separation and rice mill combined machine1 set
Rice polisher machine1 set
Rice color sorter machine1 set
Rice grader machine1 set
Rice weighing and packing machine1 set
Double elevator1 set
Single elevator5 sets
(rice polisher machine ,color sorter machine ,rice packing machine is optional)

Technical parameter of small rice milling line


Output:800~1000 kg/h

Power :42.94kw


Video Of Small Rice Milling Line
