pan type disc granulator machine making organic fertilizer

The disk angle of the fertilize pan granulator is arc and its granulating ratio is over 93% which is higher among all types of fertilizer granulator The fertilizer pan granulator machine has 3 mouths that are used to discontinuously produce fertilier granules, which reduces labor intension and improve labor efficiency. The bottom of the disk/disc granulator is supported by several armor plates solidly. The pan granulator is the best choice for your requirement to make organic fertilizer granules with raw materials of chicken

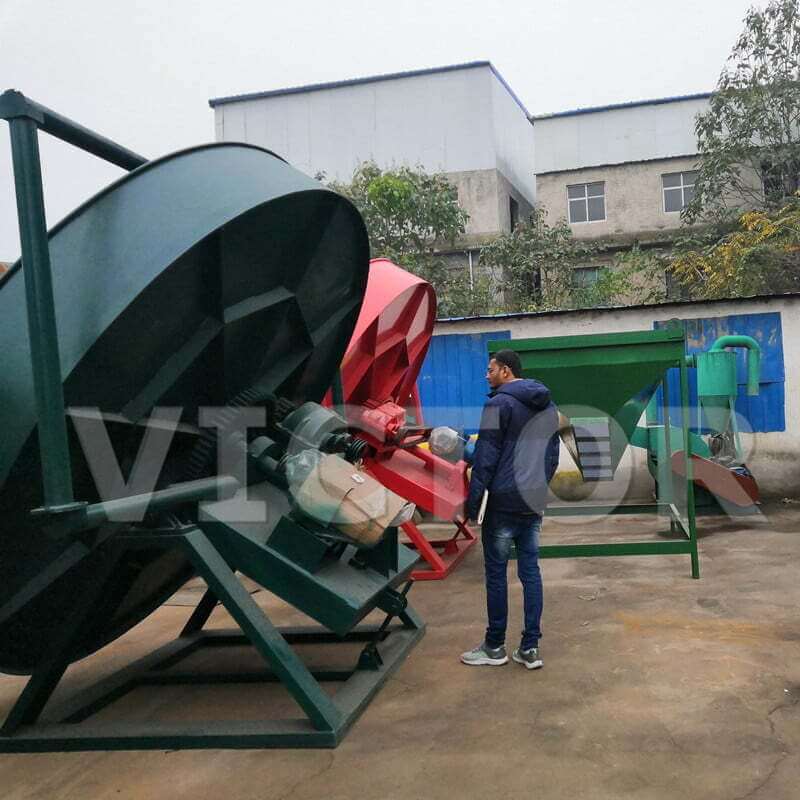

Pan Granulator South Africa

manure,sheep manure, cattle manure,human waste and so on. But if you would like to make NPK compound fertilizer, using rotary granulator is the best choice for you.The disc granulator is one of the best granulation ratio among all fertilizer granulation machines. As the disc granulator machine manufacturer of various organic & compound fertilizer machines, we supply different types of disc pelletizer. They vary with inner diameter, side height, and rotating speed. Based on the production condition, and combining with self construction of factory building and capital budget, customers can choose whichever models they like to put into production. Absolutely, our disc granulator is an ideal fertilizer pellet machine for you.

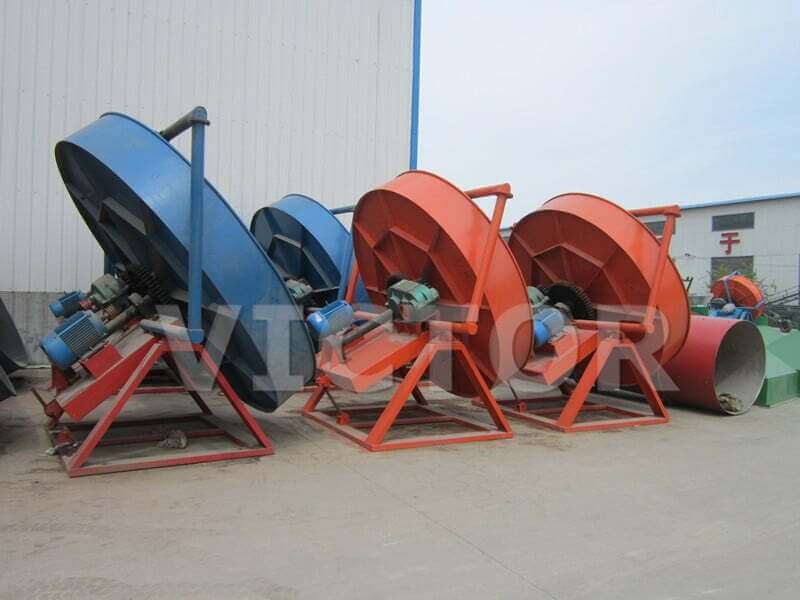

Disc Granulator For Sale

Features of Disc Pan Granulator machine


1.The disc pan adopts circular arc structure, promising 93% compound fertilizer yield.
2.The disk uses strong iron material, sturdy and durable. Due to strong, stable and lasting base design, there is no need fixing the base with Anchor Bolt.
3.The inside lining of the pan adopts high strength and strong corrosion-resistance plastics glass, with simply structure, high fertilizer granules yield, and easier to maintenance.
4.This fertilizer granulator machine is stable and reliable in operation, low noise.
5.It is used in our compound fertilizer production line and organic fertilizer production line

Working principle of pan granulator machine

Adjust the balling disc between 40 ° -55 ° angle. Raw material powder in a fertilizer mixer is evenly moistened by atomized water , then delivered the raw materials into the fertilizer pan granulator. The raw materials moisture should be controlled at 20 to 30%. The materials powder are added directly into the disc fertilizer granulating machine, and pan granulator will rotate in specific speed . Due to adhesion and plasticity of the material, the pellets bond with each other and grow up gradually in the course of the campaign.

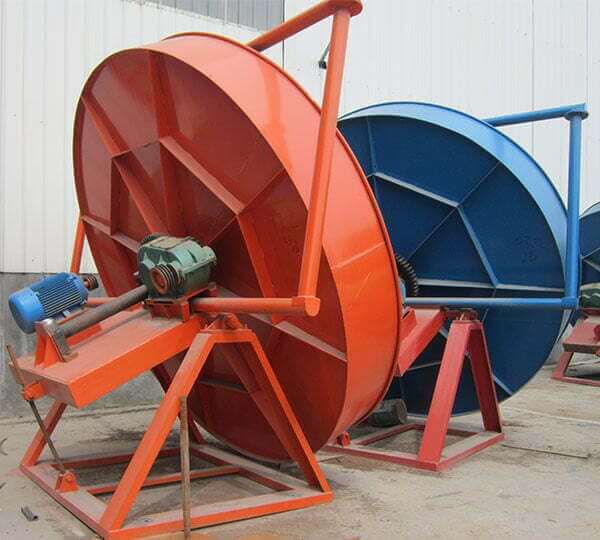

Pan Granulator Working Principle

Structure and features:

The disc granulator can be divided into five parts:
1.Frame part: As the whole body’s transmission part and rotating part are supported by the frame, the force is large. Therefore our the frame parts of our machine are welded by excellent carbon steel plate and channel steel, also our machine have through strict quality certification and specific technical requirements, all have reached the requirements of the application of the machine.


2.Adjustment part: The most important part of the whole machine is the granulation tray, and the whole center of gravity of the granulation plate is installed on the adjusting part. Our company has adopted the welding of excellent carbon steel plate and channel steel, and has passed the strict quality certification. All of them have met the requirements of this machine.


3.Transmission part: The transmission part of the whole machine is particularly important, and the whole work is done according to it. The motor and reducer on the transmission regulating rack are all purchased from the ISO/9001 quality system certification free product, and the quality is reliable.


4.Granulation plate part: The granulation disc angle of the machine is designed with a whole arc, the grain yield can reach more than 92%, At the bottom of the granulation disk, we use a number of radiation steel plate to strengthen, so our machine will be durable and never deformation.

Raw materials for disc granulator

Raw materials for making organic fertilizer can be animal manure like chicken manure,sheep manure,cow manure, organic waste, straw meals,grass meals,human waste and so on. Beside you can also add some micro element like compound materials. the fertilizer pan granulator require the moisture is 20–30%,if it is above this, using our new design organic fertilizer pellet making machine is best choice.

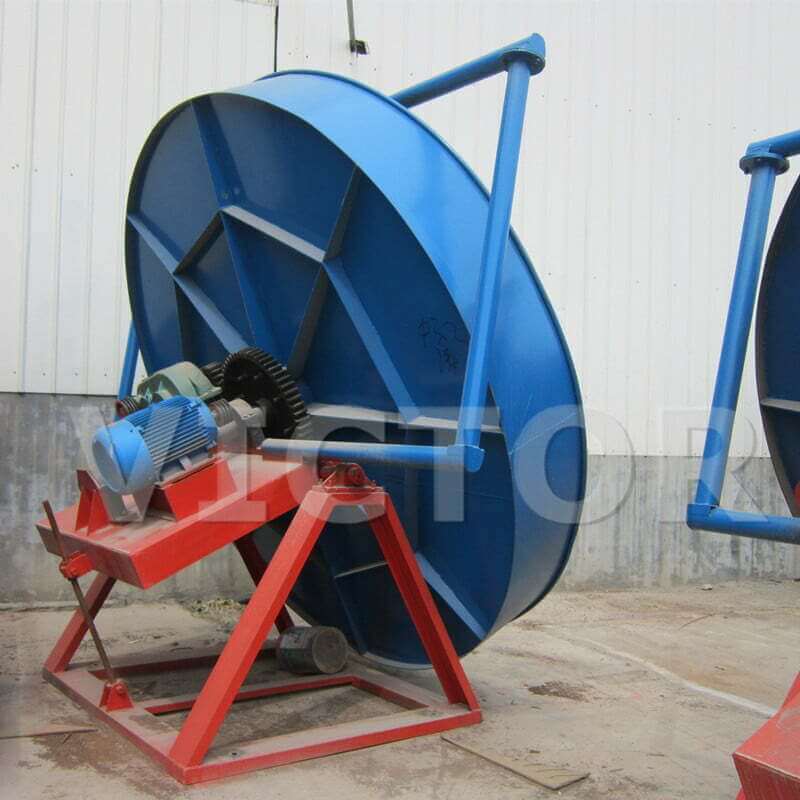

Pan Granulator Supplier

specification of disc granulator

Model

Inner diam(mm)

Side height(mm)

Rotation speed

( r/min )

Motor power

( kw )

capacity

ZL18

1800

300

18

3

0.3–0.5(t/h)

ZL20

2000

350

16

5.5

0.5–1(t/h)

ZL25

2500

380

13.5

7.5

1–2(t/h)

ZL28

2800

400

13

11

2–3(t/h)

ZL30

3000

420

12.5

15

3–4(t/h)

disc granulator video
