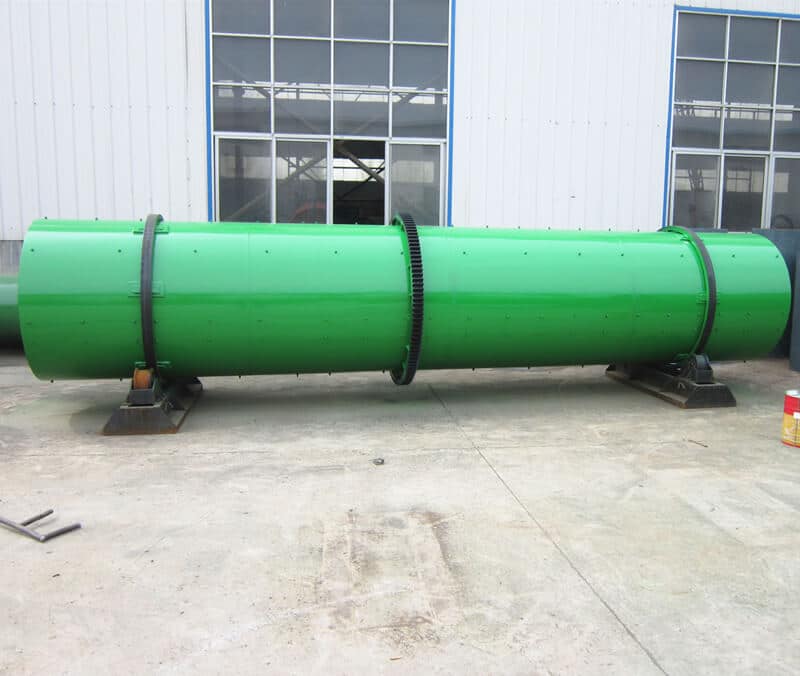

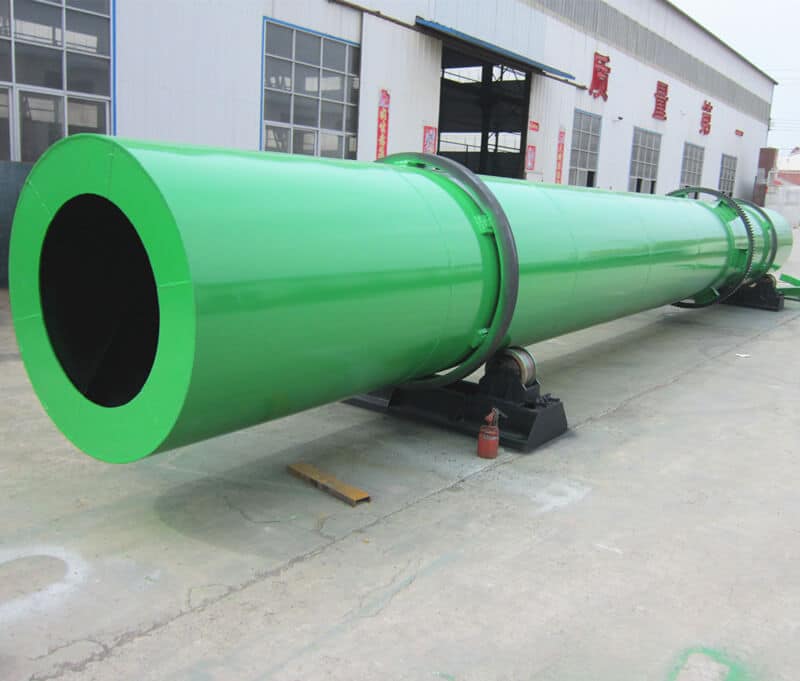

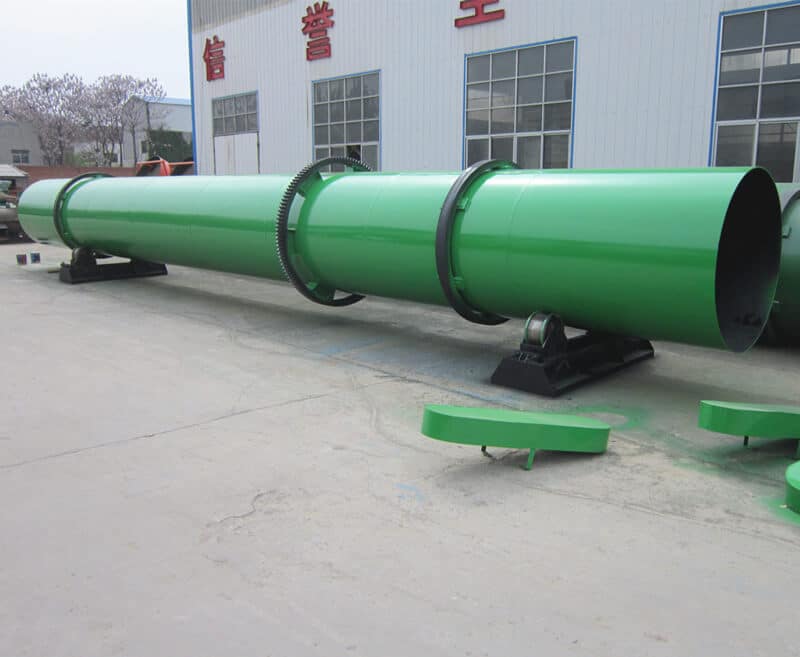

rotary drum cooler is used for fertilizer production line used together with the drum drying machine, cooling a certain temperature of fertilizer granules, the drum cooling machine can greatly improve the cooling rate, reducing labor intensity and improve production and further removal of the water and reduce fertilizer tablets temperature. At the same time this type drum cooling machine can also be used for other powder, granular material in the cooling. It has a compact structure, cooling of high efficiency, reliable performance and adaptability.
Features of Fertilizer Rotary Drum Cooling Machine
1. This rotary cooling machine uses high quality anti-corrosion and wear-resistant materials which greatly improve the service life of the machine.
2. Drive parts, the important parts of the machine, are made of high quality steel and have passed the strict quality requirements. The drive speed reduction unit adopts Nylon Pin Coupling to transfer drive.
3. Reasonable design of lifting board helps to maximize heat transfer between the high-temperature material and the cooling air. It can improve the cooling efficiency and cool the materials evenly.
4. The rolling belts are fixed on both sides of the machine, supporting the whole machine body.
5. The machine body is welded by high quality medium carbon steel plate. The lifting plates in the machine body adopts high quality wear-resistant material.
specification of rotary drum cooler
Model |
| capacity | Motor | Reducer | |||||
Diam | Lth | Angle | speed | t/h | type | power | speed | ||
mm | mm | ( 。) | r/min | Kw | r/min | ||||
LQ8800 | 800 | 8000 | 2-5 | 4.5 | 1-1.5 | Y132M-4 | 7.5 | 1440 | ZQ350 |
LQ10100 | 1000 | 10000 | 4.5 | 1-2 | Y132M-4 | 7.5 | 1440 | ZQ350 | |
LQ12120 | 1200 | 12000 | 4.7 | 2-2.5 | Y160M-4 | 11 | 1460 | ZQ350 | |
LQ15120 | 1500 | 12000 | 5 | 4-6 | Y180L-6 | 15 | 970 | ZQ400 | |
LQ15150 | 1500 | 15000 | 5 | 5-7 | Y180L-6 | 15 | 970 | ZQ400 | |
LQ18150 | 1800 | 15000 | 3.9 | 7-10 | Y200L1-6 | 18.5 | 970 | ZQ500 | |
LQ20200 | 2000 | 20000 | 3.9 | 8-14 | Y200L2-6 | 22 | 970 | ZQ650 | |
LQ22220 | 2200 | 22000 | 3.2 | 12-16 | Y250M-6 | 37 | 980 | ZQ750 | |
LQ26240 | 2400 | 24000 | 3 | 15-20 | Y225M-6 | 45 | 980 | ZQ850 |
remark:this above data is just for reference,oue engineer will design according to your demand.
