Technical Parameters of multifunction grain sheller machine Model VTC-1000 VTC-4000 Application Corn,soybean,sorghum,rice,wheat Capacity (kg/h) 1000~2000 4000~5000 Power (kw/hp) 3kw/4hp 11kw/15hp Power Type Electric motor / gasoline engine / diesel engine Electric motor / diesel engine Size (mm) 1150*450*850 1450*700*1300 Weight (kg) 110 380 Multi crop grain sheller machine for millet threshing Multi crop grain sheller …
Technical Parameters of millet thresher machine Model VTZ-100 Capacity (kg/h) 2000~2200 Power (kw/hp) 11kw motor 15hp diesel engine Size (mm) 1800*1650*1500 Weight (kg) 470 paddy rice and sorghum thresher machine video When wheat, barley, sorghum, paddy rice or other grains are harvested, the grain must be separated from the rest of the plant before it …

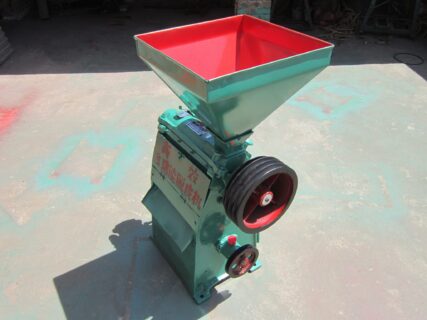

Technical parameters of grain peeling machine Model VTGT500 Capacity (kg/h) 500~600 Power 5.5kw/8hp Roller diameter (mm) 90*180 Number of Roller 2 Feeding port size (mm) 57*52 Output port size (mm) 50*43 Peeling rate 95% Weight (kg) 90 Size (mm) 680*485*1030 Zhengzhou Victor machinery provides big, medium and small grain peeler machine for each kind of grain, including corn,rice ,wheat,soya bean, garden peas, mung, …

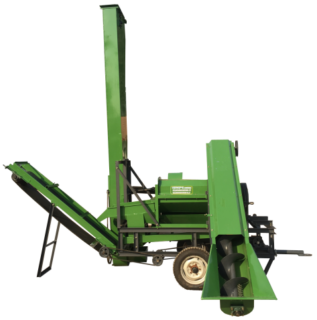

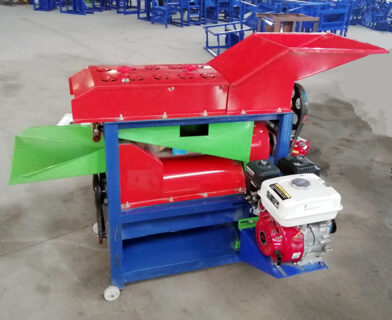

Specification of corn sheller machine Model VTQY10 VTQY20 Capacity(ton/h) 10~15 20~22 Power(hp) 22/28 50 Percentage of breaking ≤1% ≤1% Dirt percentage ≤1% ≤1% Threshing performance more than 98% more than 98% Loss percentage ≤1.5% ≤1.5% Overall Weight(kg) 970 2000 Overall Size (mm) 3650*3080*1850 4500*2300*1700 Automatic corn sheller machine is a new type of automatic corn threshing machine which is improved for …

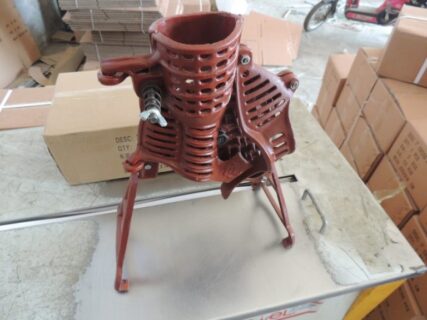

Parameters of hand crank corn sheller Model VTSY-1 VTSY-2 Efficiency(kg/h) 100~200 150-200 Threshing rate（％） ≥98 ≥98 Breakage rate（％） ≤2 ≥98 Total weight（kg) 7.5 12 Overall Dimension(mm) 400*300*550 400*300*550 MOQ 20 20 Working video of manual corn sheller hand crank corn sheller is a small kind of sheller machine for threshing maize powered by hand,which features on …

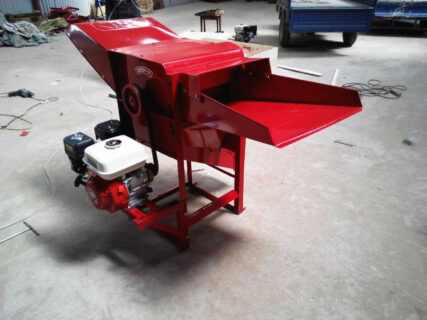

Data of wheat thresher machine Model VTX600 VTX800 VTX1000 VTX1500 Capacity(kg/h) 500~600 800~1000 1000~1500 1500~2000 Power(kw) 3kw/4hp 7.5/12hp 11kw/15hp 15kw/22hp Power type Electric motor / petrol engine / diesel engine Size(mm) 900*600*1150 1340*1450*1380 2300*1600*15550 2500*1770*1550 Weight(kg) 70 210 280 350 Optional accessories Large wheels,walking chassis video of small threshing machine the wheat thresher machine has …

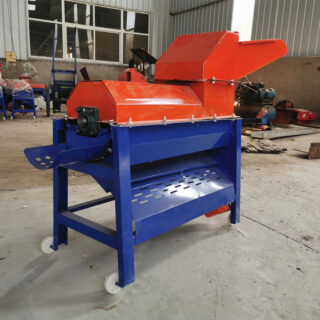

Data of maize threshing machine Model VTL1000 VTL 2500 Application Maize / corn Capacity(kg/h) 1000~1500 2500~3000 Power(kw) 3 3 Power Type Electric / diesel engine / gasoline engine size(mm) 750*650*900 850*650*1000 Weight (kg) 75 120 corn threshing machine video The corn threshing machine is popular both in farm and factory after they harvest corn and it can thresh …

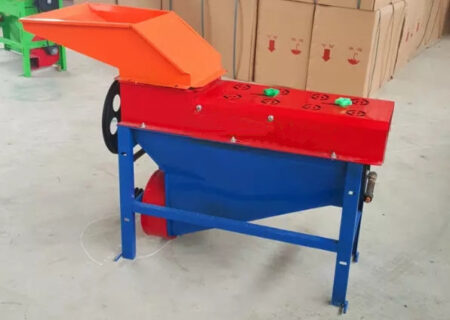

Data of corn peeling machine Model VTP1000 VTP3000 Application Corn / maize cob peeling Capacity(kg/h) 1000~2000 3000~4000 Power(kw) 2.2 3 Power Type Electric motor / diesel engine / gasoline engine Size(mm) 750*500*850 850*500*1050 Weight(kg) 70 110 corn peeling machine is mainly made up with screw rollers and rubber rollers,which can in effect remove the skins of …
Data of corn peeler thresher machine Model VTM2000 Capacity(kg/h) 2000~3000 Power (kw) 2.2kw/6hp Power type Electric motor / petrol / diesel Size(m) 1.6*1.1*1.3 Weight(kg) 150 corn thresher machine and peeler machine has combined multifunction, at the same the corn peeler thresher machine can peel the skin and thresh the kernels from the corn cob,but will …
