Details of automatic rice milling plant
Model:VTN40
Paddy stoner 1 unit
Paddy huller 1 unit
Gravity separator 1 unit
Rice mill 3 units
Rice grader 1 unit
Elevator 6 units
Electrical control cabinet 1 unit
capacity: 1.5 tons~2 tons/h
Power required:86KW
Size:9000*3500*4200mm
| No.&Item | Pictures | Model | Power (kw) | Qty | Note |

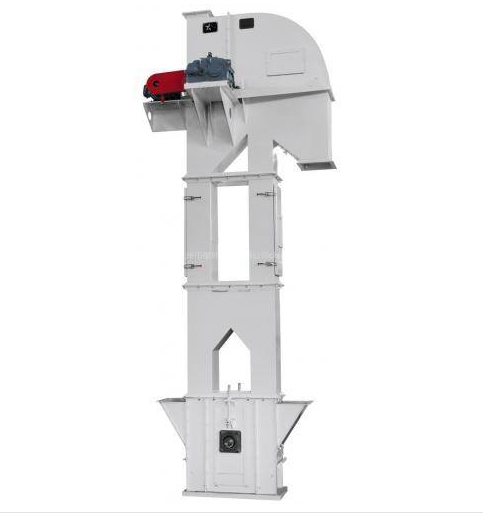

| Bucket elevator |  | DTG26/5 | 1.5 | 1 | Head and bottom δ3.0, middle pipe delta 1.8,for paddy rice feeding |

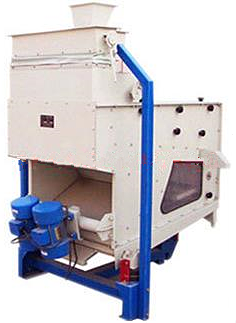

| Rice destoner and cleaner |  | TXC15 | 3+0.5+0.5 | 1 | Paddy cleaning rate ≥98% |
| Bucket elevator | | DTG26/4.2 | 1.5 | 1 | Head and bottom δ3.0, middle pipe delta 1.8, for cleaned paddy feeding |
| Paddy huller |  | MLGT25 | 5.5 | 1 | Frequency converting control,for paddy rice hulling |
| Bucket elevator | | DTG26/4.2 | 1.5 | 1 | Head and bottom δ3.0, middle pipe delta 1.8 |

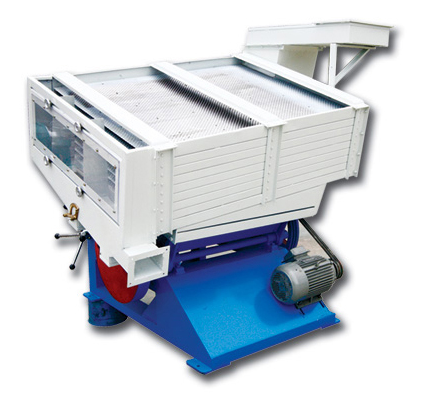

| Paddy separater |  | MAC100*5 | 1.1 | 1 | GB grade, impeller dynamic balance test,for hulled rice srceen and sperating |
| Bucket elevator | | DTG26/4.2 | 1.5 | 1 | Head and bottom δ3.0, middle pipe delta 1.8, for cleaned rice feeding |

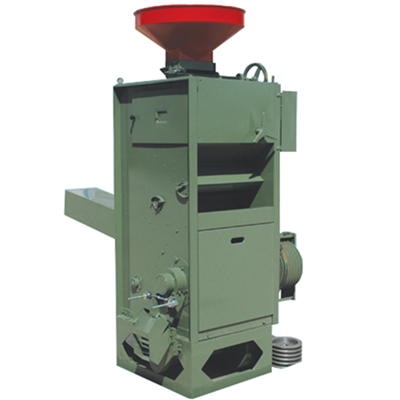

| Rice milling machine |  | N150 | 18.5 | 1 | For hulled rice milling |
| Bucket elevator | | DTG26/4.2 | 1.5 | 1 | Head and bottom δ3.0, middle pipe delta 1.8, for cleaned rice feeding |
| Rice polisher machine |  | N110 | 15 | 2 | For milled rice polishing |
| Bucket elevator | | DTG26/4.2 | 1.5 | 1 | Head and bottom δ3.0, middle pipe delta 1.8, carry milled rice to rice grading machine |
| Rice grading machine |  | MMJP80*3 | 1.1 | 1 | For white rice grading with 3 grade |
| Bucket elevator | | DTG26/5 | 1.5 | 1 | Head and bottom δ3.0, middle pipe delta 1.8,for white rice feeding |

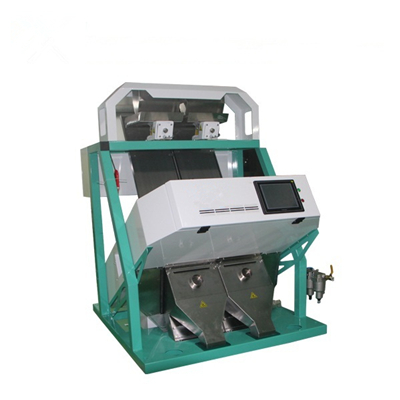

| Rice color sorter machine |  | 6XSM128 | 1.5 | 1 | Rice color sorting it can pick out yellow or black rice |
| Bucket elevator | | DTG26/5 | 1.5 | 1 | Head and bottom δ3.0, middle pipe delta 1.8,for white rice feeding |

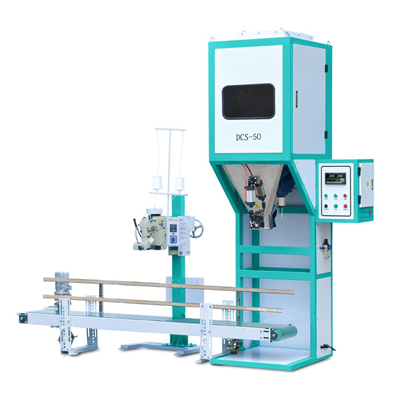

| Automatic package machine |  | DCS25 | 0.37 0.37 | 1 | Rice packing Automatic rice weighing ,sealing and transport 1~25kg/bag 400–800bags/h |
| Other parts for rice milling plant | |||||
| No.& Item | Name | Model | Power (kw) | Qty | Note |
| / | Power Distributor | / | / | / | For whole processing line control |
| / | Auxiliary materials | / | / | / | Frame ,paint,cable etc |
| Total Amount | 17 SETS | 73.49KW | |||
| Need space: 10*8.5*5.5m |
video of full automatic rice mill plant
This automatic rice mill plant is developed by our company which can produce high-quality rice, complete rice milling plant is an ideal equipment to produce Grade I Standards rice, Grade II Standards rice , special and fine cleaning rice. The family of devices with a compact structure, process performance is stable, reliable and durable, easy to install, low energy consumption, operation and maintenance easy and so on. this fully automatic rice mill plant is an ideal equipment for medium and large size rice processing factory and cereal company.we also have other capacity rice mill plant for your choice.
Features of automatic rice mill plant
1.Automatic rice milling plant is the process that helps in removal of hulls and bran`s from paddy grain to produce polished rice. compact structure, convenient operation, small occupation area, low power consumption, short manufacturing process, high work efficiency, reduce the cost of grain processing, complete rice milling plant is a comprehensive type of rice processing combined rice machine.
2.This fully automatic rice milling plant can process paddy into national standard rice just in one process. Automatci rice milling plant can produce rice continuously. And the capacity of the single machine and plant can be customized according to your special requirements. So complete rice mill plant is the most ideal paddy processing equipment for grain distributing station, the mountainous area, farm as well as self-employees.
3.This rice milling plant is combined with bucket elevators, vibration cleaner, de-stoner, husker, paddy separator,dust remove, it is practical and eco-friendly,complete rice milling line is good performance of impurities and stones removing.
4.Automatic rice mill plant is compact and reasonable. Automatic rice milling line is convenient to operate and maintain, saving workshop space,The installation can be based on steel framed operation platform or concrete flatbed according to customers requirepment.
5.The rice color sorter machine and rice packaging machine are optional,we can match it according to your needs with factory price .
6.this price of this automatic rice mill plant is very low cost directly supplied by factory
