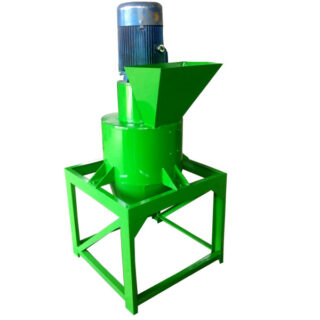

specifications of chain mill crusher machine Model Maximum size of entering granule(mm) Size after crushing (mm) Motor power (kw) Production capacity (t/h) VLP500 ≤60 <Φ 0.7 11 1-3 VLP600 ≤60 <Φ 0.7 15 1-5 VLP800 ≤60 <Φ 0.7 15 2-8 chain mill crusher machine introduction The chain mill crusher machine is mainly used to crush various materials into small particles. …
specification of disc granulator Model Inner diam(mm) Side height(mm) Rotation speed ( r/min ) Motor power ( kw ) capacity ZL18 1800 300 18 3 0.3–0.5(t/h) ZL20 2000 350 16 5.5 0.5–1(t/h) ZL25 2500 380 13.5 7.5 1–2(t/h) ZL28 2800 400 13 11 2–3(t/h) ZL30 3000 420 12.5 15 3–4(t/h) disc granulator video Fertilizer disc …

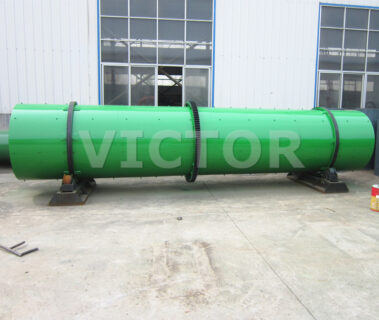

specification of drum granulator model I.D.(mm) Length(mm) Capacity(t/h) Power(kw) Ø1.2×4 1200 4000 1–3 5.5 Ø1.4X5 1400 5000 3–5 7.5 Ø1.6×6 1600 6000 5–8 11 Ø1.8×7 1800 7000 8–10 15 Ø2.0×8 2000 8000 10–15 18.5 Ø2.2×8 2200 8000 15–20 22 Ø2.4×8 2400 8000 25 37 Ø2.8×8 2800 8000 35 45 Remark:this specification for rotary granlator machine …
specification of double roller granulator Model FGZL—1 FGZL—1.5 FGZL—2 Capacity 0.5—1t/h 1—1.5t/h 1.5—2t/h granulation rate ≥85% ≥85% ≥85% Power 15kw 18.5kw 22kw Material moisture content Max 15% Gramulation temperature Constant temperature pellet Diameter 3—15(mm) Strength 6—20N(resistance to crush force) Shape oval Note: The finished pellets of this double roller granulator are oval, if you need spherical pellets, you can use the …

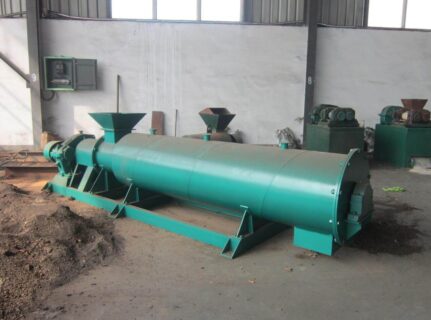

specification of fertilizer production machine model Capacity(t/h) Power(kw) YSL–400 1–1.5 22 YSL–600 1.5–2 30 YSL–800 2–3 45 YSL–1000 3–4 55 YSL–1200 4–5 75 video of fertilizer making machine In addition to the double roll granulator and disc granulator used for making organic fertilizer pellets, we have a fertilizer pellet machine. The newly designed livestock manure …

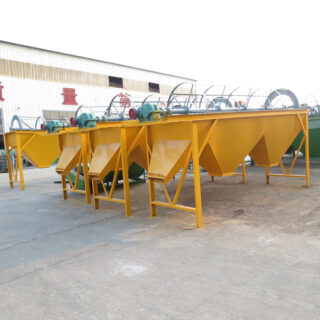

Rotary drum screener machine is commonly used in fertilizer production line, which is mainly to separate the products, but also to achieve into grade, finished product uniform classification. Modular screen, easy to maintain and replace, simple structure, convenient operation and smooth operation. Application of rotary drum screener machine Rotary drum screener machine can be used …

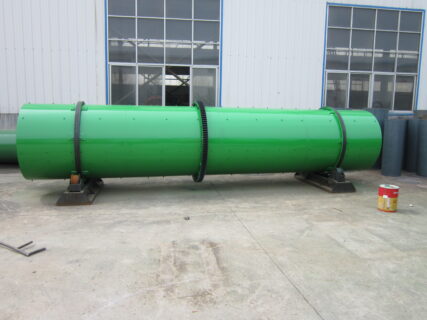

specification of rotary drum fertilizer dryer machine model Capacity(t/h) Power(kw) Weight (T) 0.6×8m 0.3-0.5 3 5.1 0.8×10 0.5–0.8 4 6.9 1.0×10 1–2 5.5 7.5 Φ1.2×10m 2–3 7.5 13.5 Φ1.5×12m 3–4 10 18.9 Φ1.5×15m 4–5 11 21 Φ1.8×12m 5–6 18.5 22.83 Φ2.2×12m 6–10 18.5 37.6 Φ2.2×14m 10–12 18.5 40 Φ2.2×16m 12–14 30 45 Φ2.4×14m 14–16 30 51 …

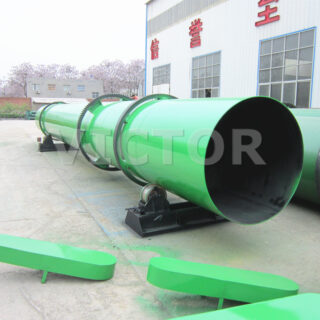

specification of rotary drum cooler Model Cylinder Body capacity Motor Reducer Diam Lth Angle speed t/h type power speed mm mm ( 。) r/min Kw r/min LQ8800 800 8000 2-5 4.5 1-1.5 Y132M-4 7.5 1440 ZQ350 LQ10100 1000 10000 4.5 1-2 Y132M-4 7.5 1440 ZQ350 LQ12120 1200 12000 4.7 …
specification of fertilizer coater machine Specification (mm) Barrel Production capacity Power Inner diameter Length Inclination Rotation Bm1200×4000 1200(mm) 4000(mm) 3(°) 14(r/min) 5(t/h) 5.5(kw) Bm1400×4000 1400(mm) 4000(mm) 3(°) 13(r/min) 7(t/h) 7.5(kw) Bm1600×6000 1600(mm) 6000(mm) 3(°) 15(t/h) 11(kw) Bm1800×8000 1800(mm) 8000(mm) 3(°) 30(t/h) 15(kw) The rotary drum coating machine adopts special liquid coating …

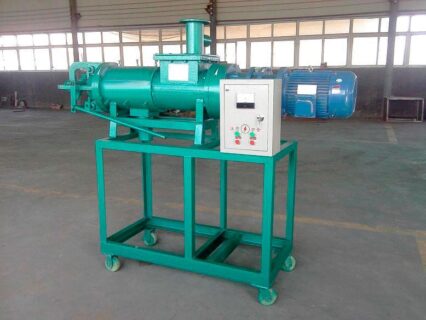

Parameters of Manure Dewater Machine model power（kw） Speed reducer Rotating speed（r/s） output（M3/H） Cow manure Pig manure Chicken manure FBTS180 5.5 5-43 33.7 4-6 5-12 2-4 FBTS260 7.5 6-43 33.7 7-10 15-20 5-7 Water pump 3.0 1450 Water distance 15-20m This manure dewatering machine is the key equipment for manufacturing organic fertilizer using animal manure, such as …

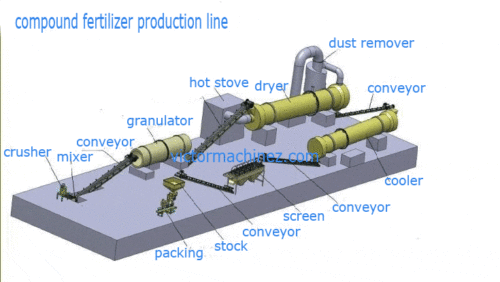

Compound Fertilizer Production Line is a combination of a series of advanced equipment. It is featured with low production expenses and its high production efficiency. This compound production line can be used for granulating all kinds of compound raw materials. And the final fertilizer particles can be made with different concentrations according to your own …

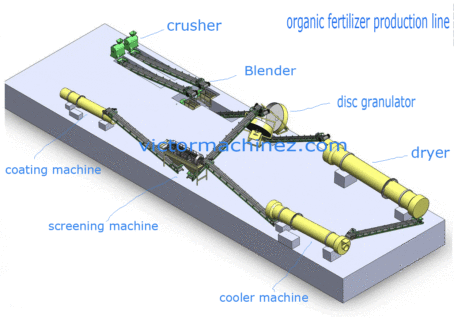

The whole organic fertilizer production line includes: fertilizer granulator, fertilizer dryer, rotary drum cooling machine,rotary drum coating machine,chain Crusher, rotary screening machine, Packaging Machines, belt conveyor and other accessories. this organic fertilizer production line is mainly used to granulating compound or organic fertilizers granules using material of npk ,dap organic materials and others into compound or organic pellets. The …
